3D Printing
UV-masked LCD resin printing for fine detail at a competitive cost.
Liquid Crystal Display (LCD) printing — also called MSLA — cures a full layer of photopolymer at once. A UV LED array shines through an LCD mask that opens only the pixels in that slice. LCD delivers SLA-like surface quality with faster layer times than a scanning laser, and is often more economical than projector-based DLP for small to mid-size resin parts.
LCD — also called MSLA — shines a UV LED array through a pixel mask so each resin layer cures in one flash. You get SLA-like surfaces with faster layers than a scanning laser, usually at a keener small-batch price than projector DLP.

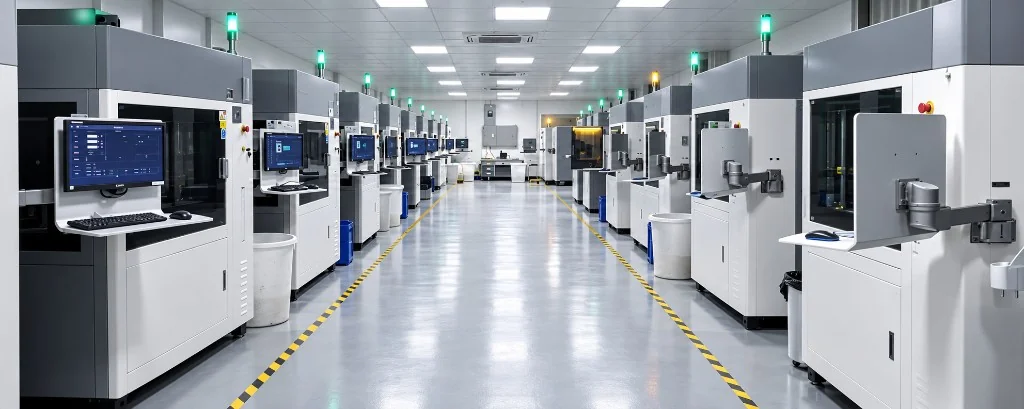

AIHFABS uses LCD for jewelry masters, figurines, small covers, and visual lots. Large cosmetic flats can pick up a faint pixel grid; we orient those faces when appearance is critical.
Pixel pitch sets the XY detail. Listed envelopes are typical production plates, not a hard stop.
| Lead time | Typical tolerance | Max build envelope | Surface finish | Supports |
|---|---|---|---|---|
| From 48 hours | ±0.2 mm on supported geometry | Typical production LCD plates up to about 300 × 168 × 300 mm (larger on request) | Smooth as-built; light pixel texture possible on large flats | Required on overhangs |

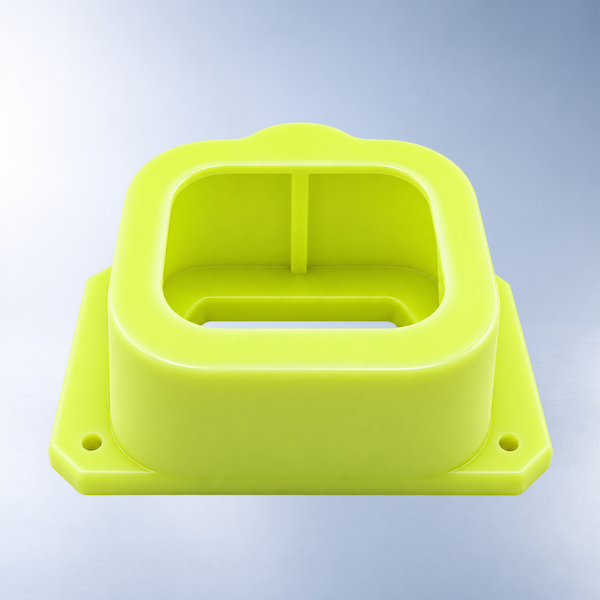

The same photopolymer families as SLA and DLP: modeling, tough, flexible, castable, high-temp, and qualified bio grades.
Smooth as-built, with optional sanding on large flats that show the mask grid.
Standard LCD deliverable. Light pixel texture may remain on large flats.
Flats sanded and clear-coated when a show-model skin is required.
Dye or tint for presentation colors after the UV post-cure.
LCD is the masked-LED resin option. Pick SLA for very large tanks, DLP for projector cells, SLS for nylon.
| Process | Lead time | Tolerance | Pricing |
|---|---|---|---|
| Selective Laser Melting (SLM)Metal | From 5 business days (express options where available) | ±0.3 mm or ±0.3% (whichever is greater), tighter after machining | Instant quote · typical metal part from $90 |
| Stereolithography (SLA)Resin | From 48 hours for standard resin jobs | ±0.2 mm on well-supported features | Instant quote · typical resin part from $18 |
| Digital Light Processing (DLP)Resin | From 48 hours | ±0.2 mm on supported geometry | Instant quote · typical resin batch from $20 |
| Liquid Crystal Display (LCD)Resin | From 48 hours | ±0.2 mm on supported geometry | Instant quote · typical resin part from $16 |
| Selective Laser Sintering (SLS)Plastic powder | From 48 hours express; 72 hours / 5 days standard tiers | ±0.3 mm or ±0.3% | Instant quote · typical nylon part from $28 |
| Multi Jet Fusion (MJF)Plastic powder | From 48 hours express; standard 72 hours / 5 days | ±0.3 mm or ±0.3% | Instant quote · typical PA12 part from $25 |
| Fused Deposition Modeling (FDM)Thermoplastic filament | From 24–48 hours depending on size | ±0.5 mm or ±0.5% on FDM-appropriate geometry | Instant quote · typical prototype from $12 |
Exposure time is set to the resin and the smallest feature on the plate. Mixed-height nests are split if they would under- or over-cure.
Wash, post-cure, and support removal match the vat-photopolymer SOP. Drain holes are required on sealed hollows.
Respect pixel size, then give uncured resin a way out.
| Feature | Recommended practice |
|---|---|
| Thin walls | Stay above the resin minimum or the wall will not fully cure. |
| Cosmetic flats | Tilt large A-sides off the pixel grid when appearance is critical. |
| Hollows | Add drain holes before post-cure or trapped resin will leak later. |
| Text | Keep engraved or raised text larger than a few pixels wide. |
Selective Laser Melting (SLM) is a powder-bed metal additive process. A high-power laser scans each cross-section of your CAD model, melting metal powder that solidifies into a dense part.
Full process details
Stereolithography (SLA) cures liquid photopolymer with a precision UV laser, building parts layer by layer.
Full process details
Digital Light Processing (DLP) solidifies an entire layer of photopolymer at once using a projected image.
Full process detailsYes — masked stereolithography. An LCD panel gates UV LEDs so each layer flashes at once.
LCD cells are usually more economical for small-to-mid resin lots. DLP may still win on certain projector envelopes.
Typical production plates are about 300 × 168 × 300 mm. Larger work is reviewed on request.
Sometimes on large flats. We can re-orient or sand those faces when you mark them as cosmetic.
From 48 hours for standard LCD resin jobs.
