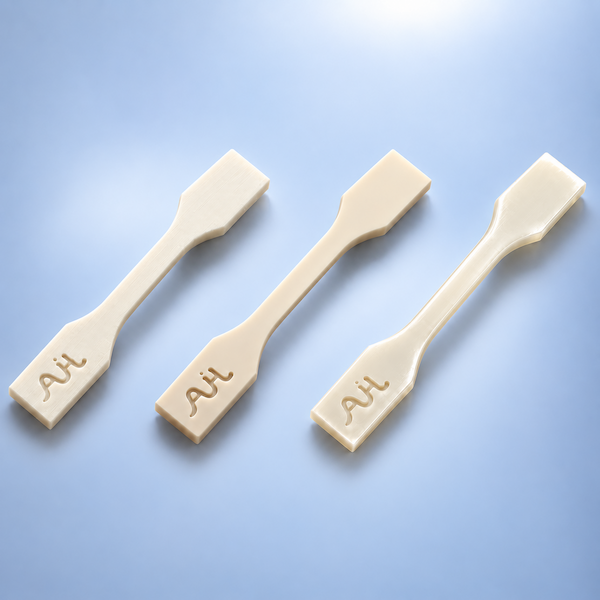

Fused Deposition Modeling (FDM)
Fused Deposition Modeling (FDM) extrudes heated thermoplastic filament in thin beads, stacking layers to form a part.
Full process detailsServices
Industrial-grade additive manufacturing for rapid prototypes and production 3D printed parts — high precision, quoted from one CAD file.
AIHFABS runs SLA, DLP, LCD, SLS, MJF, FDM, and metal SLM in one shop. Use this landing to pick a process, then open the child page for materials, design rules, and typical tolerances.
A digital model is sliced into layers. Each layer is cured, fused, or extruded, then the next layer is added until the part is complete.
Upload STEP, STL, or 3MF. We read walls, volume, and support risk from the file.
Compare processes and materials on one quote — resin, nylon, or metal.
Choose finish (sand, dye, vapor smooth, machine) and quantity before you order.
We print, inspect, and ship. Delivery dates stay on the quote line.
3D printing — additive manufacturing — builds a physical part from a CAD or mesh file by placing thin layers of photopolymer, thermoplastic, or metal powder. The printer only adds material where the model needs it, so lattices, internal channels, and one-off shapes do not require dedicated tooling.
On AIHFABS the same upload can price resin, nylon, and metal processes. You choose the process for cosmetics, strength, or heat, then add dye, vapor smoothing, or machining on the quote instead of sending a second RFQ.
Four processes cover most buyer searches: FDM, SLS, SLA, and MJF. Metal SLM, DLP, and LCD sit in the capabilities list below.
Fused Deposition Modeling (FDM) extrudes heated thermoplastic filament in thin beads, stacking layers to form a part.
Full process details
Selective Laser Sintering (SLS) fuses thermoplastic powder with a laser. Unsintered powder surrounds the part during the build, acting as natural support.
Full process details
Stereolithography (SLA) cures liquid photopolymer with a precision UV laser, building parts layer by layer.
Full process details
Multi Jet Fusion (MJF) applies fusing and detailing agents across a powder bed, then uses infrared energy to fuse each layer.
Full process detailsUse the plus column to decide if additive is the right first path. Use the limits column to know when CNC or molding will win later.
Open a process for materials, envelopes, and design rules. Then upload CAD for a dated 3D printing quote.

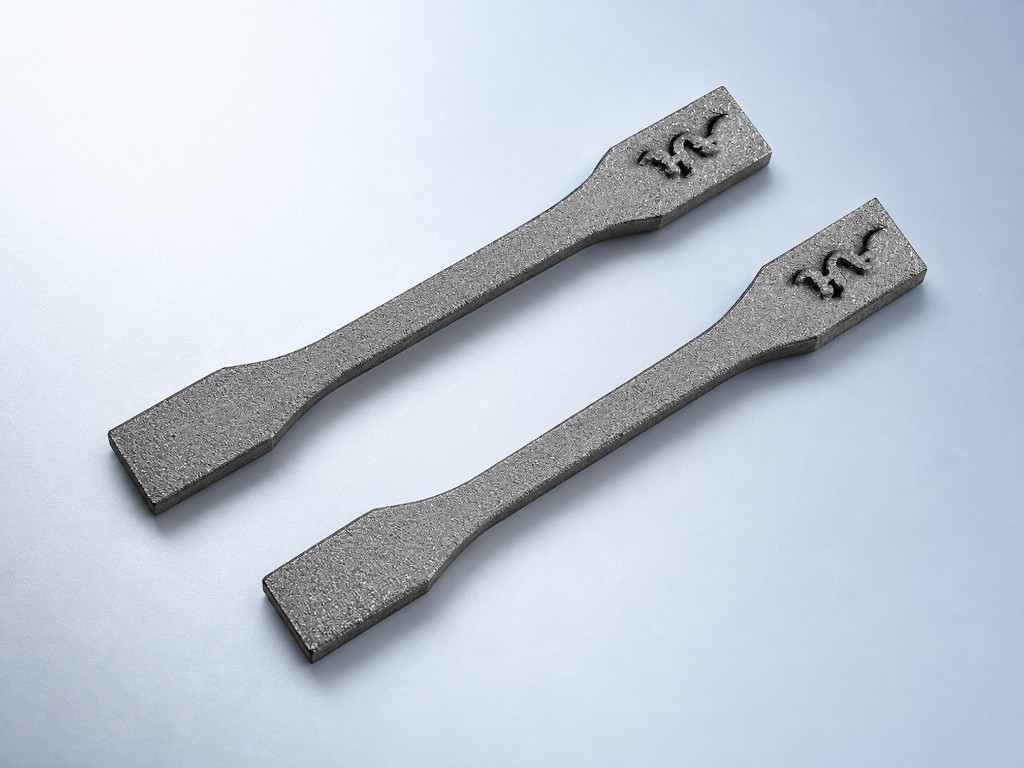

Selective Laser Melting (SLM) is a powder-bed metal additive process. A high-power laser scans each cross-section of your CAD model, melting metal powder that solidifies into a dense part.
Materials: Aluminum Alloy AlSi10Mg Aluminum Alloy 6061 Stainless Steel 316L Stainless Steel 17-4PH Stainless Steel 18Ni300 Inconel 718 Titanium Alloy Ti₆Al₄V
Stereolithography (SLA) cures liquid photopolymer with a precision UV laser, building parts layer by layer.
Materials: Standard Resin White Standard Resin Black High-Detail Resin Gray High-Detail Resin White Tough Resin White Ultra Tough Resin Yellow Ultra Tough Resin Blue High-Temp Resistant Resin Red Premium Clear Resin
Digital Light Processing (DLP) solidifies an entire layer of photopolymer at once using a projected image.
Materials: Standard Resin White Standard Resin Black High-Detail Resin Gray High-Detail Resin White Tough Resin White Ultra Tough Resin Yellow Ultra Tough Resin Blue High-Temp Resistant Resin Red Premium Clear Resin
Liquid Crystal Display (LCD) printing — also called MSLA — cures a full layer of photopolymer at once.
Materials: Standard Resin White Standard Resin Black High-Detail Resin Gray High-Detail Resin White Tough Resin White Ultra Tough Resin Yellow Ultra Tough Resin Blue High-Temp Resistant Resin Red Premium Clear Resin
Selective Laser Sintering (SLS) fuses thermoplastic powder with a laser. Unsintered powder surrounds the part during the build, acting as natural support.
Materials: Nylon PA 12 White Nylon PA 12 Black Nylon PA 12 Glass-filled White Nylon PA 11 White Nylon PA 11 Black Nylon PA 6 Glass-filled Black TPU White Polypropylene Glass-filled
Multi Jet Fusion (MJF) applies fusing and detailing agents across a powder bed, then uses infrared energy to fuse each layer.
Materials: Nylon PA 12 Gray TPU Gray
Fused Deposition Modeling (FDM) extrudes heated thermoplastic filament in thin beads, stacking layers to form a part.
No process matches this search. Clear the box or pick All to see the full list.
Values below are shop-typical. Drawing callouts and inspection on the quote override this table.
| Process | Lead time | Tolerance | Pricing | Materials |
|---|---|---|---|---|
| Selective Laser Melting (SLM)Metal | From 5 business days (express options where available) | ±0.3 mm or ±0.3% (whichever is greater), tighter after machining | Instant quote · typical metal part from $90 | Aluminum Alloy AlSi10Mg, Aluminum Alloy 6061, Stainless Steel 316L, Stainless Steel 17-4PH, Stainless Steel 18Ni300, Inconel 718, Titanium Alloy Ti₆Al₄V |
| Stereolithography (SLA)Resin | From 48 hours for standard resin jobs | ±0.2 mm on well-supported features | Instant quote · typical resin part from $18 | Standard Resin White, Standard Resin Black, High-Detail Resin Gray, High-Detail Resin White, Tough Resin White, Ultra Tough Resin Yellow, Ultra Tough Resin Blue, High-Temp Resistant Resin Red, Premium Clear Resin |
| Digital Light Processing (DLP)Resin | From 48 hours | ±0.2 mm on supported geometry | Instant quote · typical resin batch from $20 | Standard Resin White, Standard Resin Black, High-Detail Resin Gray, High-Detail Resin White, Tough Resin White, Ultra Tough Resin Yellow, Ultra Tough Resin Blue, High-Temp Resistant Resin Red, Premium Clear Resin |
| Liquid Crystal Display (LCD)Resin | From 48 hours | ±0.2 mm on supported geometry | Instant quote · typical resin part from $16 | Standard Resin White, Standard Resin Black, High-Detail Resin Gray, High-Detail Resin White, Tough Resin White, Ultra Tough Resin Yellow, Ultra Tough Resin Blue, High-Temp Resistant Resin Red, Premium Clear Resin |
| Selective Laser Sintering (SLS)Plastic powder | From 48 hours express; 72 hours / 5 days standard tiers | ±0.3 mm or ±0.3% | Instant quote · typical nylon part from $28 | Nylon PA 12 White, Nylon PA 12 Black, Nylon PA 12 Glass-filled White, Nylon PA 11 White, Nylon PA 11 Black, Nylon PA 6 Glass-filled Black, TPU White, Polypropylene Glass-filled |
| Multi Jet Fusion (MJF)Plastic powder | From 48 hours express; standard 72 hours / 5 days | ±0.3 mm or ±0.3% | Instant quote · typical PA12 part from $25 | Nylon PA 12 Gray, TPU Gray |
| Fused Deposition Modeling (FDM)Thermoplastic filament | From 24–48 hours depending on size | ±0.5 mm or ±0.5% on FDM-appropriate geometry | Instant quote · typical prototype from $12 | PLA, PETG, ABS |
Starting prices are typical for simple prototypes. Final price, finish options, and ship date appear after you upload CAD.
The same processes cover automotive fixtures, medical housings, industrial jigs, and consumer models.
Ducts, clips, brackets, and cabin mock-ups while the tool is still open.
Device housings, jigs, and visual models. Biocompatible grades need project review.
Guards, fixtures, and replacement covers without waiting on a machine shop lot.
Enclosures, grips, and mechanism proofs before a mold or CNC lot is released.
Real feedback from engineers, designers, and hobbyists who ordered through AIHFABS.
Got three quotes in under a minute and saved 30% compared to my usual supplier. Parts arrived on time and matched the specs.
James M. · Mechanical Engineer
The upload and compare flow is straightforward. I tried a sample model first, then uploaded my own STEP file — both worked perfectly.
Sarah K. · Product Designer
File privacy was important to us. AIHFABS keeps our CAD confidential, and the reprint policy gave us peace of mind on the first order.
Alex L. · Startup Founder
Notes, materials, and cases sit next to this landing. Open one if you still need to lock a process.
Match the job: SLA, DLP, or LCD for smooth visuals; SLS or MJF for durable nylon; FDM for inexpensive fixtures; SLM for metal. Each child page lists materials and limits.
Typical plastic parts hold about ±0.2–0.3 mm; metal SLM is tighter after machining. Exact capability is on each process page and confirmed on the quote.
Yes. Many orders print a near-net shape, then machine critical faces. Start here, then open SLM or the CNC landing if you need subtractive work.
STEP is best for metals and CNC-adjacent jobs; STL or 3MF is fine for plastics. One upload prices every process you select.
Upload CAD once. Compare SLA, SLS, MJF, FDM, and SLM with materials and lead times before you order.
