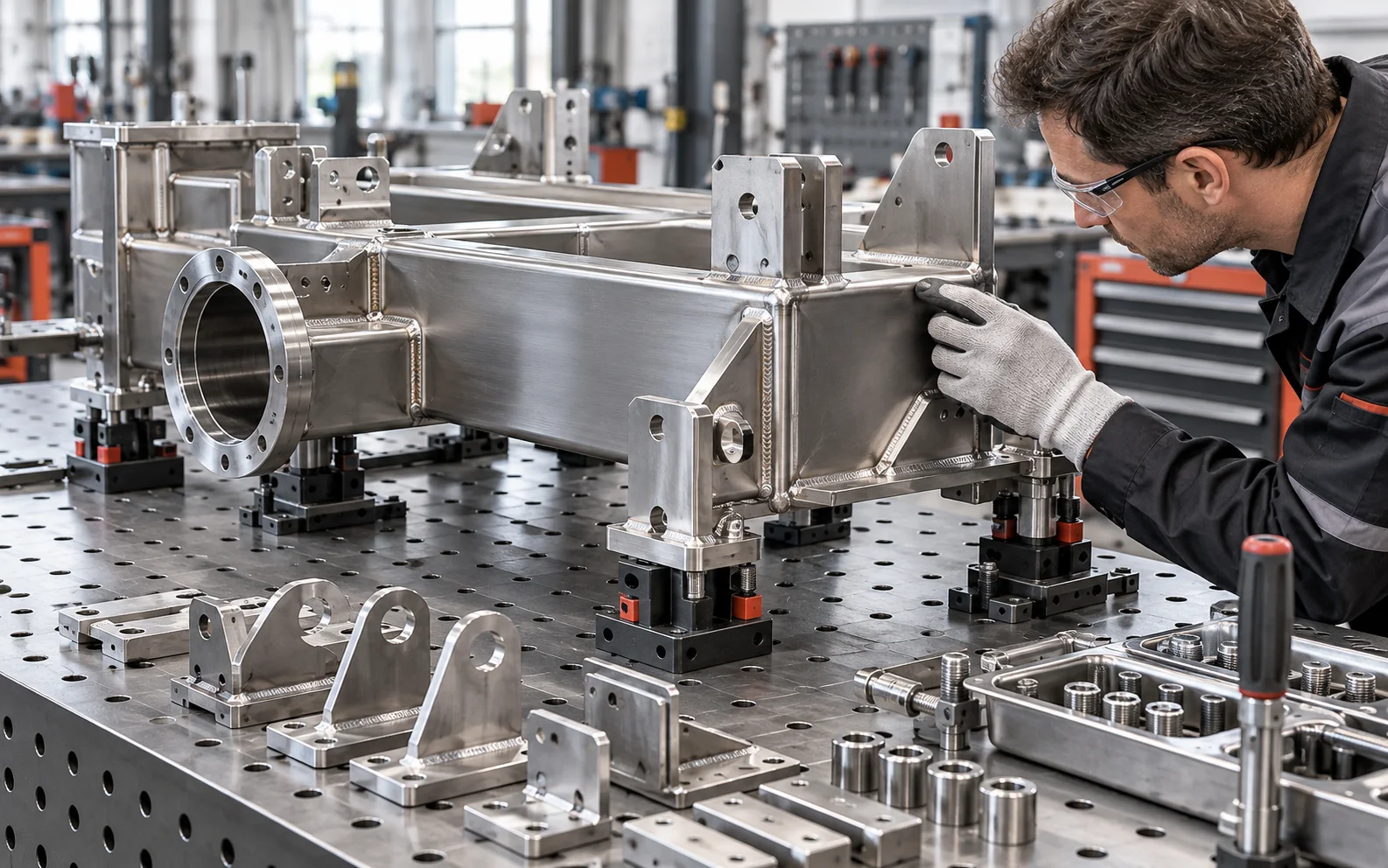

AIHFABS assembly and welding review
Ask AIHFABS to review custom components, joining requirements and assembly checks together. A complete assembly brief makes interfaces and responsibilities clear before parts are manufactured.
PLAN THE JOINT
Mechanical assembly and welding create different manufacturing and inspection requirements.
Review screws, locating features, threaded inserts and other hardware alongside the custom parts. Allow access for installation, tightening and future maintenance.
Define hardware specifications and who supplies each purchased component. Include torque, alignment or other acceptance requirements where they matter.
Identify the base materials, joint design, weld locations and required finish. Discuss access, heat distortion and features that may need machining after joining.
Welding method, fixture needs and inspection requirements require an assembly-specific feasibility review before quotation.
FROM BOM TO A COMPLETE BUILD
Give each item a clear source and each operation a clear owner.
| Input | Include in the brief | Decision to resolve |
|---|---|---|
| Custom components | Part numbers, CAD, drawings and revisions. | Which parts need manufacture and which are supplied? |
| Purchased hardware | Fastener, bearing, insert and other component specifications. | Who supplies and verifies the purchased items? |
| Joining operations | Joint details, installation notes and assembly sequence. | Which methods, fixtures and access are feasible? |
| Acceptance & packaging | Fit checks, functional tests and shipping protection. | What defines a complete accepted assembly? |
CHECK THE RESULT AS AN ASSEMBLY
Inspect the interfaces and function after joining, rather than relying only on individual part measurements.
Review the combined effect of mating dimensions. Locating features and clearances should support repeat assembly without forcing components into position.
Account for insert installation, fastening loads, bonding or weld distortion. Protect surfaces and dimensions that must stay within the drawing requirement.
Agree on movement, access, leak or load checks as applicable to the product. Confirm test equipment, criteria and documentation with the project team.
Include custom parts, purchased hardware, joining notes and the checks that define a working assembly.
