Precision Manufacturing of Black Nylon Gears for Industrial Application

Project Background

In the field of industrial automation, gears are the core components of the transmission system, and their performance directly affects the operating efficiency and stability of the equipment. The customer of this project is a well-known enterprise focusing on high-end industrial equipment manufacturing. Its new equipment has extremely strict requirements for transmission gears: not only need to withstand high-intensity mechanical loads, but also have excellent wear resistance, self-lubrication and corrosion resistance to adapt to complex industrial environments.

Challenges and Exploration

At the beginning of the project, in order to ensure that the gear performance reaches the optimal level, our engineering team had multiple rounds of in-depth technical communication with the customer. Facing the customer's ultimate pursuit of material performance, we did not rush into production, but started a rigorous journey of material screening and testing.

· Initial Attempts: We first tried a variety of common engineering plastics, such as polyoxymethylene (POM) and ABS. Although these materials performed well in processing performance, in the simulated high-load operation test, their wear resistance and anti-deformation ability failed to fully meet the customer's industrial-grade standards for "long life and maintenance-free".

· Limitations of Metal Solutions: Subsequently, we also evaluated aluminum alloy and stainless steel solutions. Although metal gears have extremely high strength, they are heavy and have poor noise control at high speeds, lacking the self-lubricating advantage of plastic gears, which is contrary to the "lightweight and low-noise" design concept pursued by the customer.

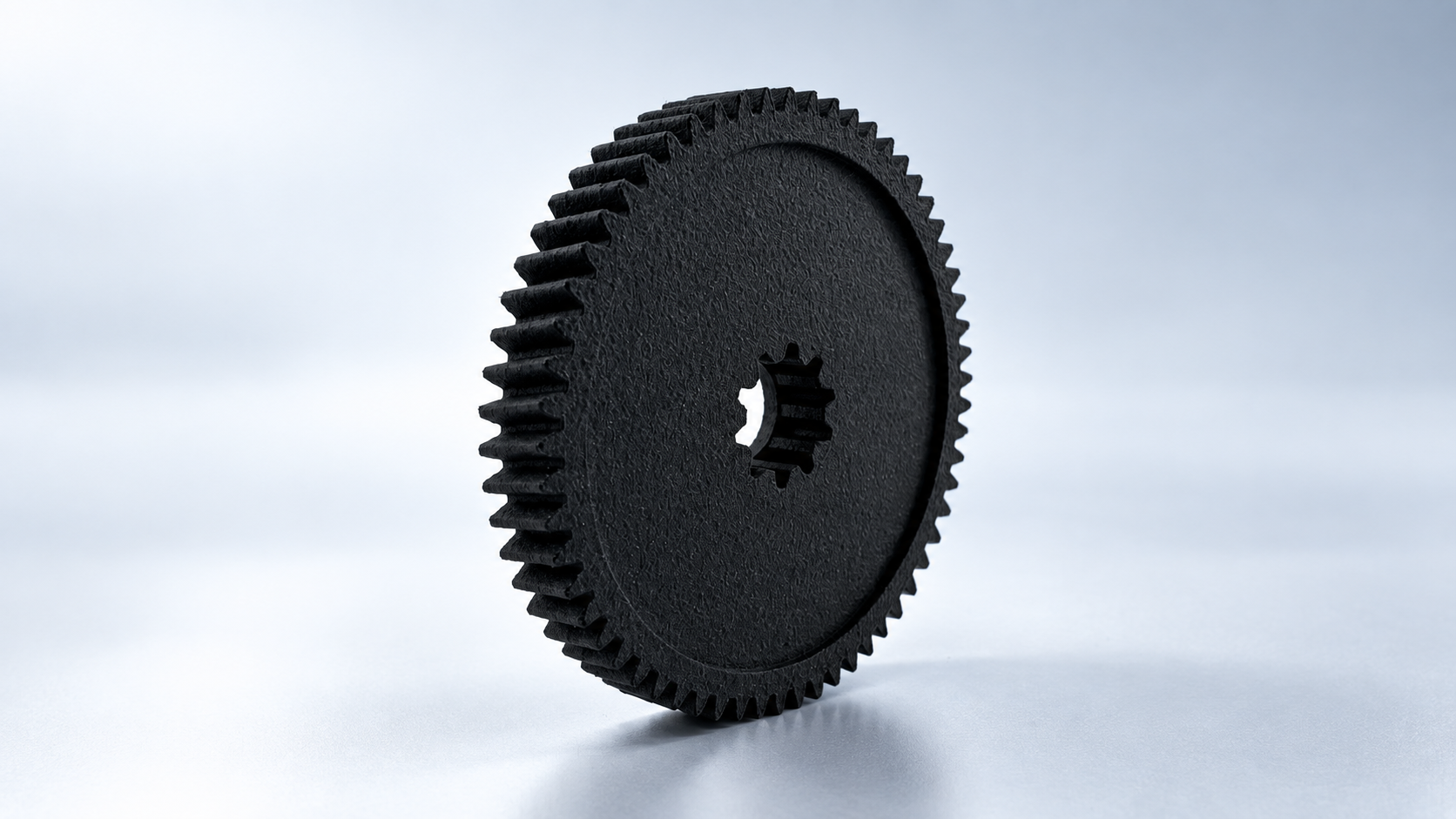

· Final Breakthrough: After several weeks of repeated demonstration and sample testing, we focused on high-performance black nylon. This material not only has excellent mechanical strength and toughness, but its unique molecular structure gives it outstanding wear resistance and self-lubricating properties. More importantly, through a special black masterbatch coloring process, the finished product not only presents a deep and uniform matte black texture in appearance, but also has excellent anti-ultraviolet aging ability, perfectly fitting the customer's dual high standards for appearance and performance.

Solution and Manufacturing

After determining the material, the project entered the key stage of batch manufacturing.

1. Precision Mold Development: According to the shrinkage characteristics of black nylon, we made micron-level corrections to the mold to ensure that the meshing accuracy of each tooth shape can reach the industrial tolerance standard.

2. Injection Molding Process Optimization: During the batch production process, we strictly controlled the injection molding temperature and cooling time, effectively eliminating the internal stress easily generated by nylon materials, and ensuring the dimensional stability of the gear during long-term high-speed operation.

3. Strict Quality Inspection: Each batch of products underwent strict dimensional inspection and destructive testing to ensure that every gear delivered to the customer is a high-quality product.

Results and Delivery

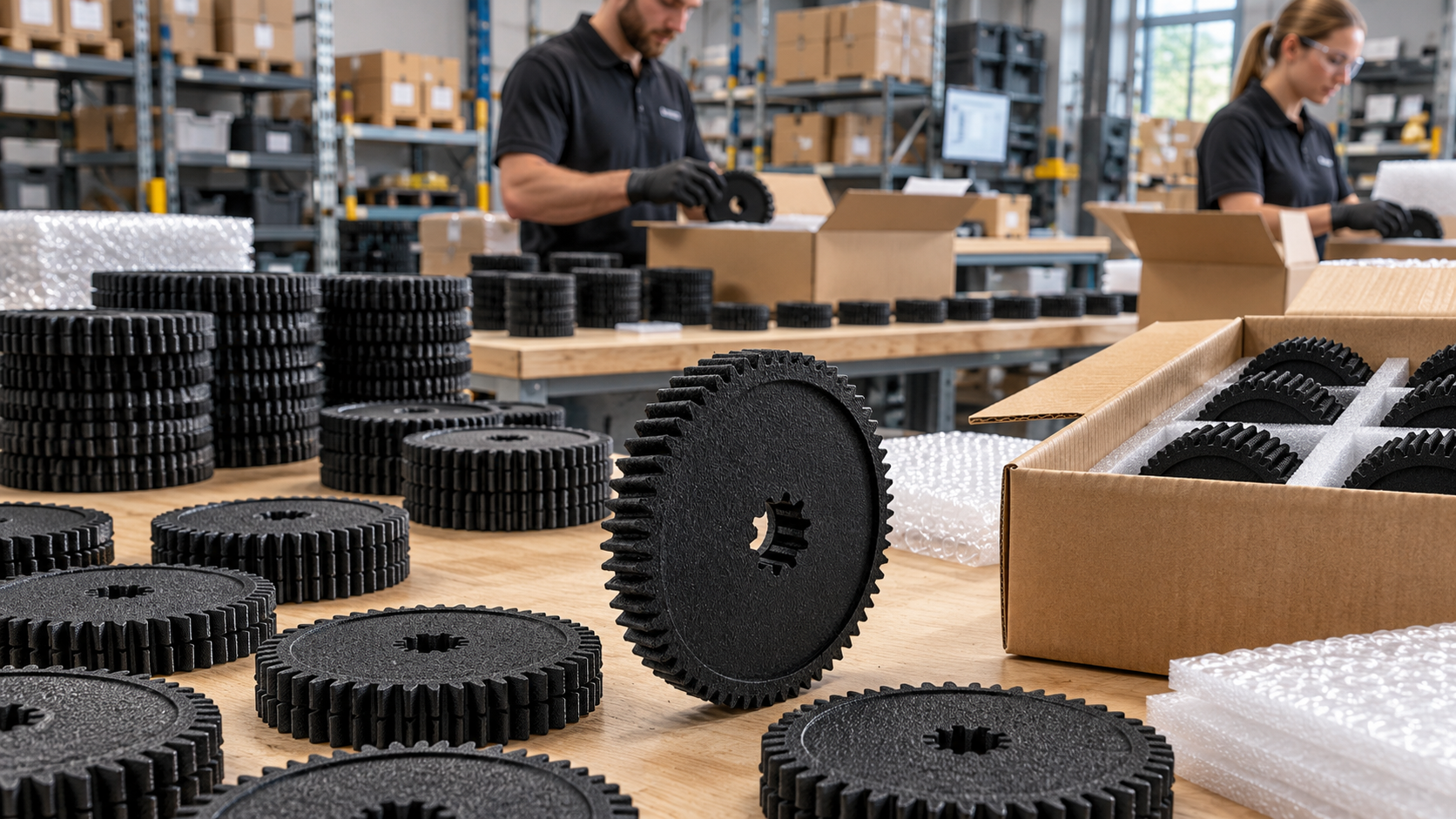

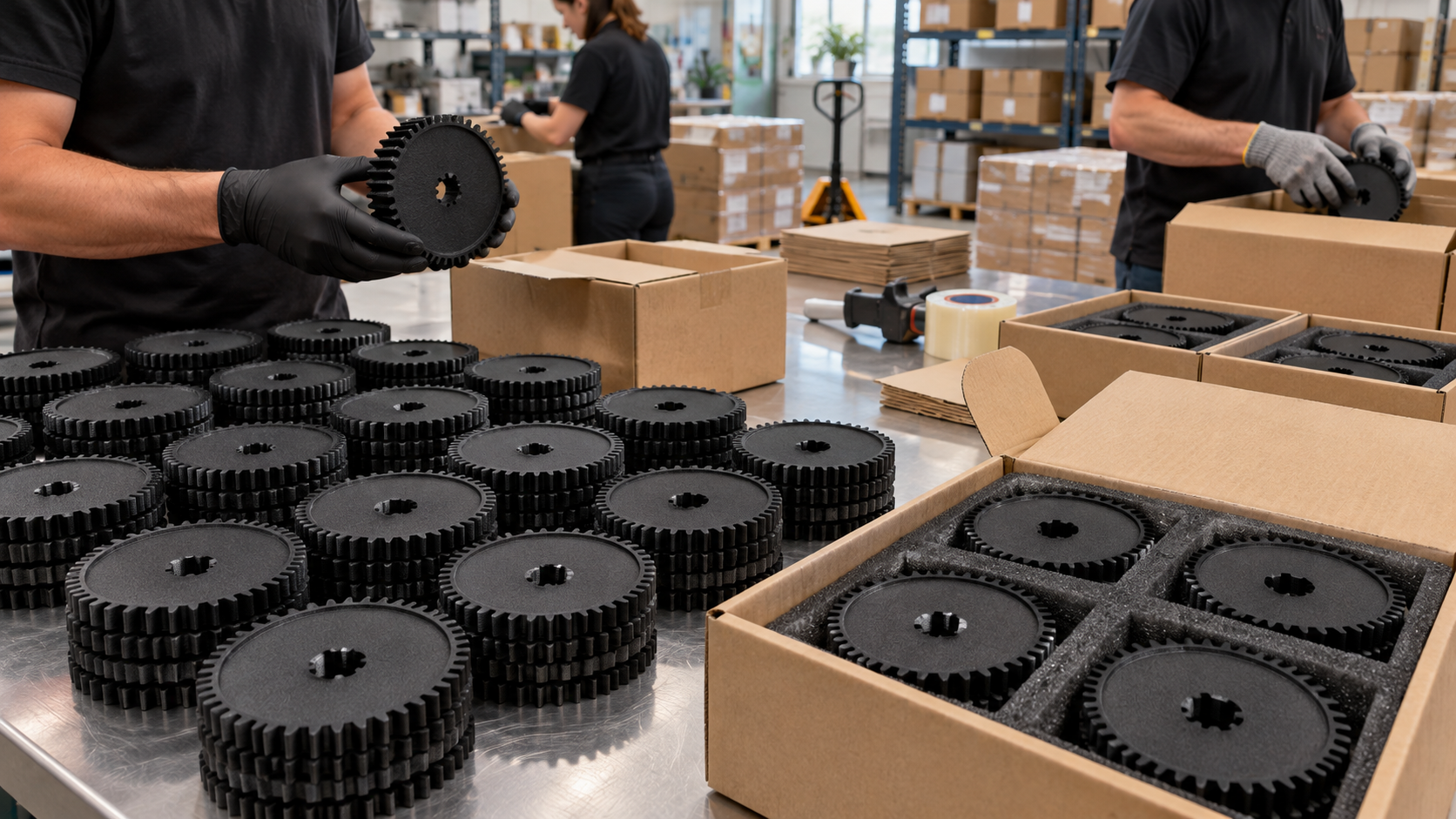

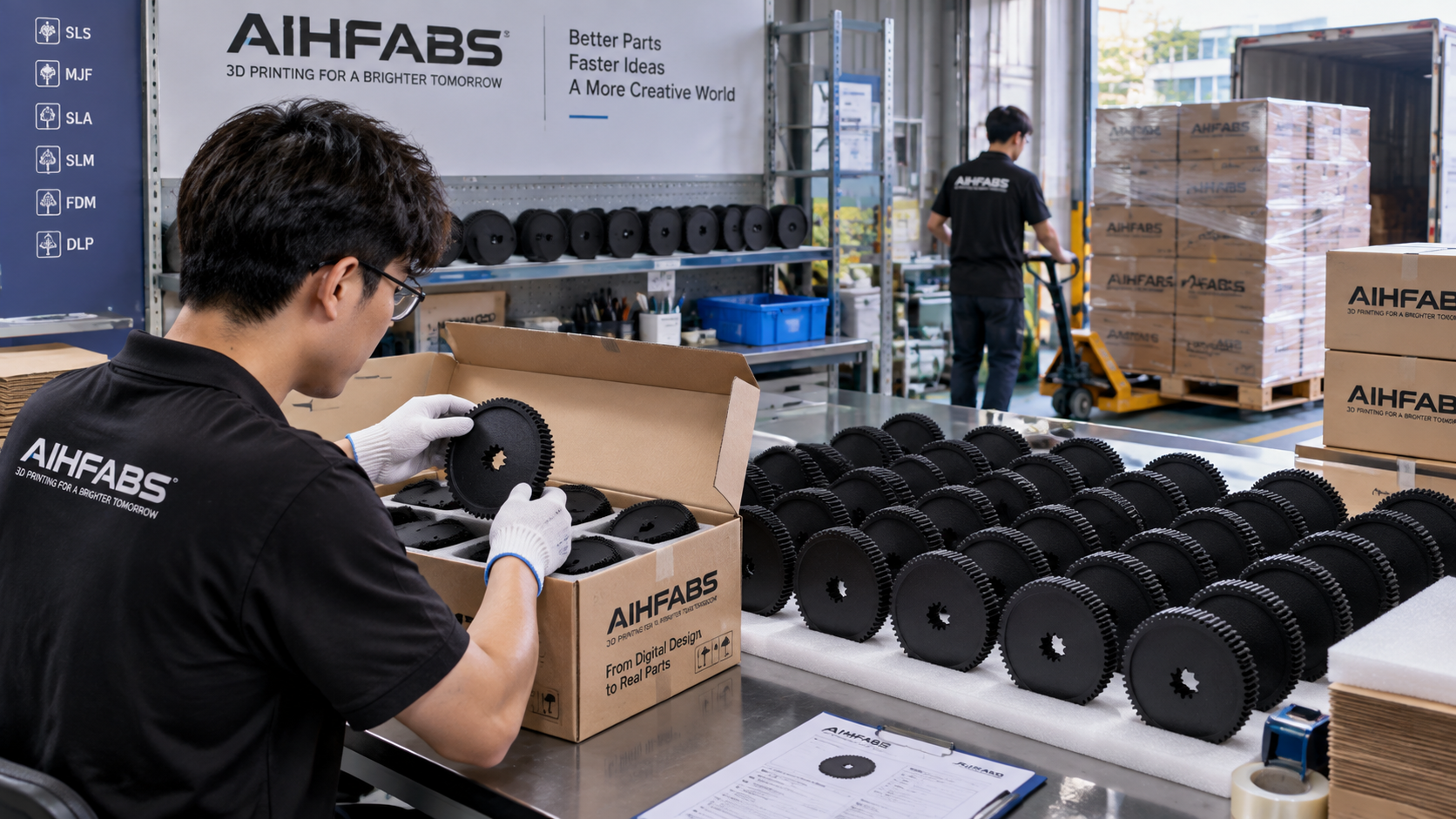

Finally, this batch of black nylon gears achieved perfect delivery.

· Performance Compliance: In the subsequent installation test of the customer, the gear group performed excellently. The noise level was significantly lower than expected, and after hundreds of hours of continuous operation, the tooth surface wear was very small, fully meeting the strict standards of industrial use.

· Stunning Appearance: The black appearance not only gives the equipment a modern and professional industrial aesthetic, but also effectively avoids the problem of oil stains being obvious, improving the overall texture of the terminal product.

· Customer Evaluation: The customer gave high praise to our professional service and the quality of the final delivered product, believing that our persistence and professionalism in material selection provided strong support for the market competitiveness of its products.

This cooperation is not only a successful case of batch manufacturing, but also a vivid portrayal of how we use our technical expertise to help customers solve core problems and maximize product value.
