3. Product Overview

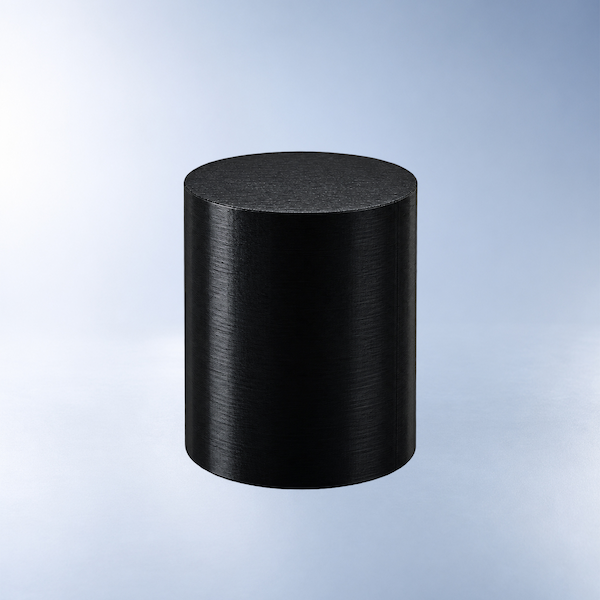

The subject of this case is a solid black cylindrical resin part, engineered for critical mechanical functions such as buffering, spacing, or rotation support.
· Visual Characteristics: Uniform black coloration with a fine, textured surface finish, indicating high-quality molding and consistent material density.
· Material Composition: A specialized toughened resin matrix reinforced for maximum durability.
· Geometry: Precision-machined cylinder with flat end faces and smooth lateral surfaces, ensuring perfect fitment in assembly.

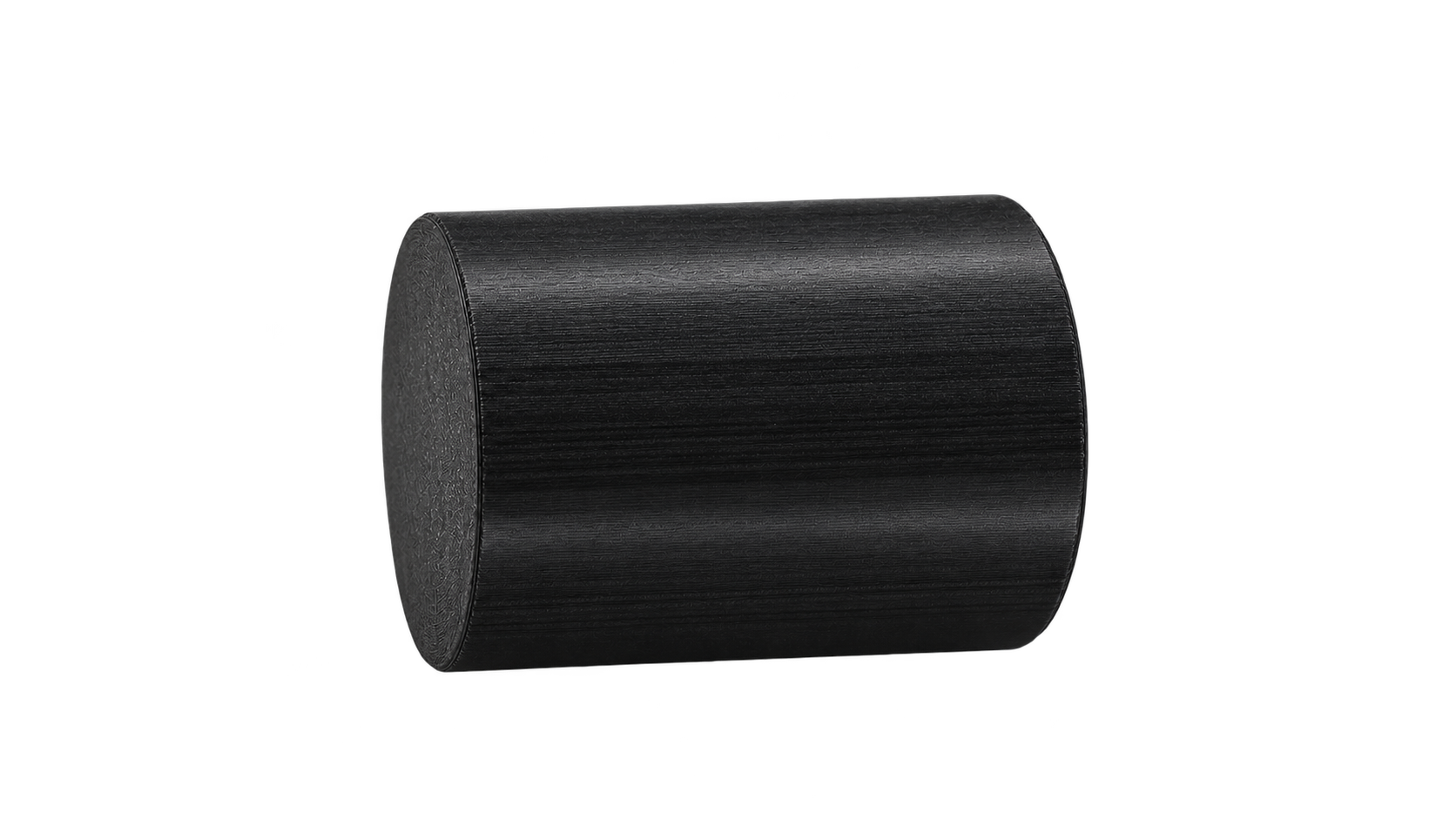

Figure 1: Black High-Toughness Resin Cylindrical Component
4. Key Technical Advantages (The "Success" Factors)
4.1 Exceptional Toughness & Impact Resistance
Unlike brittle plastics, this high-toughness resin absorbs significant kinetic energy without cracking. In drop tests and compression tests, the cylinder maintains structural integrity even under sudden heavy loads, making it ideal for shock-absorbing applications.
4.2 Superior Wear & Friction Properties
The material exhibits a low coefficient of friction and high abrasion resistance. As a rotating or sliding component, it resists surface degradation over time, preventing particle shedding and maintaining smooth operation.
4.3 Dimensional Stability under Stress
The resin demonstrates low creep behavior. Even when subjected to constant compressive force for extended periods, the cylinder retains its original shape and height, ensuring the precision of the entire mechanical assembly.
4.4 Chemical & Environmental Resistance
The black pigment and resin matrix provide resistance to UV radiation, oils, and common industrial solvents, preventing fading or chemical corrosion in harsh working environments.
5. Application Scenario (Success Validation)
In a recent deployment within automated logistics and heavy machinery sectors, these resin cylinders replaced traditional metal or standard plastic parts.
· Challenge: The previous components suffered from fatigue failure and noise generation due to metal-on-metal contact.
· Solution: The implementation of the black high-toughness resin cylinder provided a self-lubricating, noise-dampening solution.
· Result: The new component achieved a 300% increase in lifespan compared to the predecessor and significantly reduced operational noise levels, validating the material's superiority in high-stress engineering contexts.
6. Conclusion
The black high-toughness resin cylinder exemplifies the potential of advanced polymer engineering. By combining aesthetic precision with robust mechanical performance, it offers a reliable, cost-effective solution for next-generation industrial design.
