Case Background

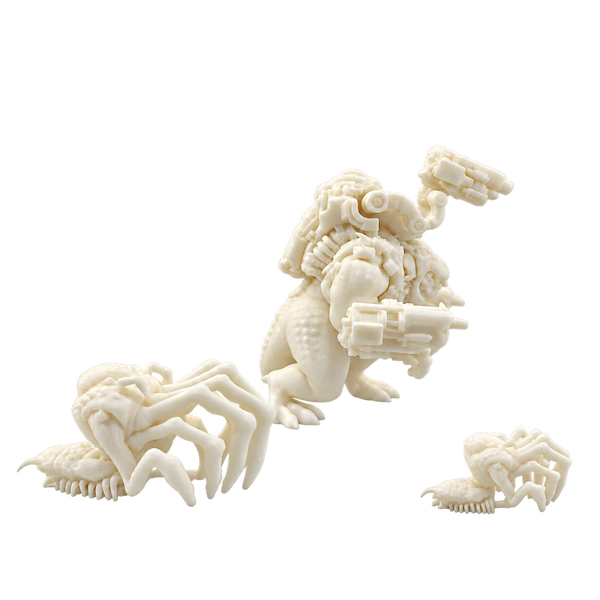

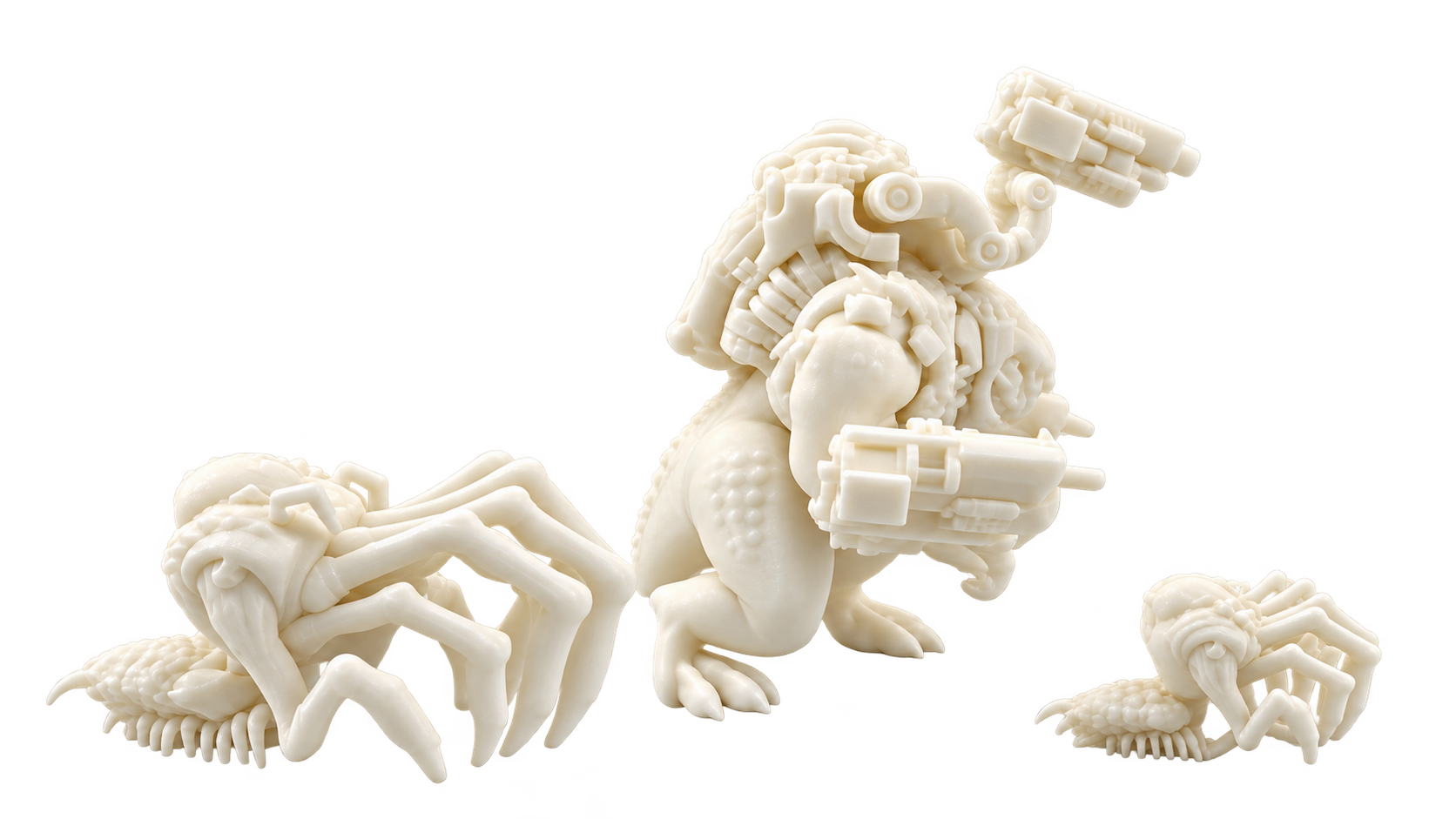

A collectible figurine studio specializing in sci-fi and gaming merchandise needed to produce a series of highly detailed display models, including a mechanical dinosaur equipped with heavy weaponry and multi-legged beetle-like creatures. Traditional resin casting was too costly and time-consuming for iterative design updates, while FDM printing could not achieve the surface smoothness required for display-grade collectibles. The studio needed a solution that could deliver museum-quality surface finish at a fraction of the cost, with no visible support marks on cosmetic faces.
Solution: SLA White Resin Printing with Optimized Parameters
The team selected SLA (Stereolithography) as the printing process and chose white resin (Standard Resin White / High-Detail Resin White) from the AIHFABS resin materials catalog for its exceptional surface quality and fine detail resolution. Key strategies included:
· Surface Optimization: White resin was selected specifically for its naturally smooth, paint-ready surface. The SLA process produces parts with ultra-fine layer resolution, eliminating the need for extensive post-processing sanding on visible faces.
· Support Placement Strategy: Supports were strategically positioned on non-cosmetic (B-side) faces only, ensuring that all display-oriented surfaces remained completely mark-free. This is a key advantage of SLA for display items where every visible face must be flawless.
· Print Parameter Tuning: Layer height was optimized to 0.05mm for fine details (facial features, weapon textures) while maintaining 0.1mm layers on larger surfaces for balanced print speed. Infill was set to solid for maximum detail retention.
· Cost Efficiency: Compared to injection molding or hand-cast resin production, SLA white resin printing reduced per-unit cost by approximately 65%, making small-batch production of collectible figurines economically viable.
Challenges & Resolutions
· Challenge 1 — Delicate Feature Preservation: The mechanical dinosaur model featured thin weapon attachments and antenna-like protrusions that risked breakage during support removal. Resolution: Supports were designed with thin, easily snap-off branches, and a 24-hour post-cure cycle ensured full material hardening before handling.
· Challenge 2 — Surface Uniformity Across Multi-Part Builds: Printing multiple beetle figures in a single build required consistent lighting exposure to avoid color or texture variation. Resolution: Build orientation was optimized so all figures received uniform UV exposure, and a calibration print confirmed consistency before the full batch.
· Challenge 3 — Cost vs. Quality Balance: While SLA resin costs more per gram than FDM filament, the elimination of post-processing labor (no sanding support marks, no primer needed on cosmetic faces) resulted in a lower total cost per display-ready part.
Results & Impact
· Surface Quality: All display-facing surfaces achieved a glass-smooth finish directly from the printer, with no visible support marks. Parts were ready for display or light painting straight out of post-cure.
· Cost Reduction: Per-unit production cost dropped by 65% compared to traditional resin casting, and by 40% compared to hand-finishing FDM prints. Small-batch runs of 5–20 units became economically feasible.
· Turnaround Time: From CAD file to finished display model in 3–5 business days, enabling rapid design iterations and same-day client approvals.
· Dimensional Accuracy: Parts achieved +/-0.2mm tolerance on well-supported features, preserving fine textural details such as scale patterns, armor plating seams, and weapon engravings.
· No Support Marks on Display Surfaces: By strategically placing supports on hidden faces, 100% of visible surfaces remained pristine — a critical requirement for collectible display items.
English Brochure: Premium Display Models with SLA White Resin
Title: "Show-Ready Precision: White Resin SLA Printing for Collectibles & Display Models"
Key Features:
· Ultra-Smooth Surface: White resin delivers a naturally smooth, fine-grain finish ideal for display and collectible parts without additional sanding.
· Zero Visible Supports: Strategic support placement on non-cosmetic faces ensures all display surfaces remain flawless.
· Cost-Effective: SLA white resin printing offers museum-quality results at a fraction of traditional casting costs.
· High Detail Resolution: Fine layers capture intricate textures, facial features, and surface patterns with exceptional clarity.
· Fast Turnaround: From digital model to physical display piece in 3–5 business days.
Why Choose SLA White Resin for Display Items?
Best Material for Visual Parts: White resin is the go-to choice for display models, collectibles, and art pieces where surface quality matters most. Explore our SLA printing services and resin materials to find the perfect grade for your project.
