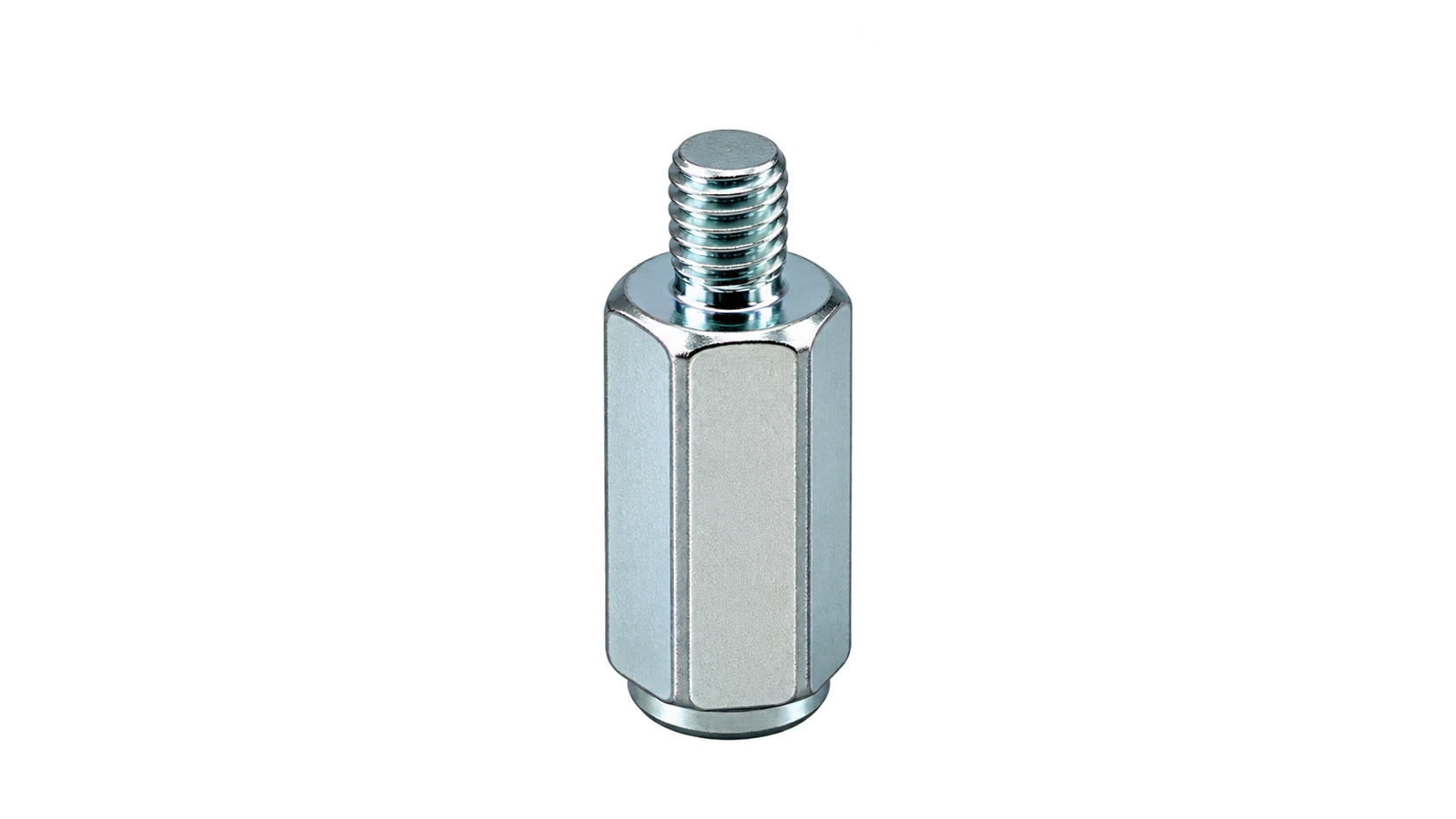

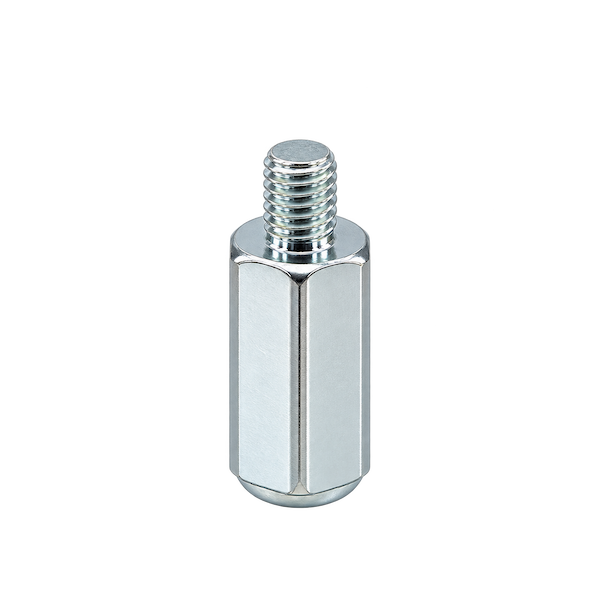

High-Strength Metal Bolts via SLM Metal 3D Printing

Case Background

An aerospace components manufacturer needed to prototype high-strength metal bolts for a new engine mounting system. Traditional CNC machining from solid billet was too expensive ($80–$120 per unit) and required lengthy lead times (3–4 weeks) for each design iteration. The engineering team needed a solution that could produce dense, mechanically robust metal fasteners quickly and affordably, while meeting strict tolerance and material certification requirements for flight-critical applications.

Solution: SLM Metal 3D Printing with DFM Optimization

The team adopted Selective Laser Melting (SLM) via metal 3D printing as the primary manufacturing route for its ability to produce fully dense metal parts with complex geometries that are difficult or impossible to machine from solid stock. Key steps included:

1. Design for Manufacturability (DFM): Engineers redesigned bolt geometries to optimize build orientation, minimizing support structures on critical thread surfaces. Strategic support placement ensured powder escape paths while preserving dimensional accuracy on mating faces.

2. Rapid Prototyping Workflow: SLM printers produced batches of metal bolts in 5–7 business days — 60% faster than traditional CNC machining which required 2–3 weeks for tooling setup and machining. Layer-by-layer construction eliminated the need for custom tooling.

3. Cost Efficiency: Metal powder costs (~$80–$150/kg depending on alloy) combined with optimized build layouts reduced per-unit cost to $25–$45, compared to $80–$120 for CNC-machined equivalents. No mold or tooling costs were required.

Challenges & Resolutions: Support Removal & Post-Processing

SLM metal printing introduces unique post-processing challenges for precision fasteners. The primary hurdles included:

• Support Removal: Metal supports attached to thread profiles and bearing surfaces required careful manual removal using precision tools. Over-aggressive removal risked damaging critical thread geometries. Solutions included optimizing support density (reducing contact points) and using breakaway support designs that fracture cleanly at predefined interfaces.

• Heat Treatment & Stress Relief: Residual stresses from the rapid thermal cycle could cause distortion in thin-thread features. Post-build heat treatment (solution annealing + aging for aluminum, stress relief for stainless steel) was integrated into the workflow, reducing dimensional drift by 70%.

• Surface Finishing: The as-built SLM surface has a grainy metallic finish (Ra 6–10 µm). For bolt threads requiring smooth engagement, secondary CNC threading or tapping was applied to critical interfaces. Show surfaces received bead blasting or polishing to achieve desired aesthetics.

• Material Validation: Testing Aluminum 6061 and Stainless Steel 316L bolts confirmed tensile strengths exceeding 300 MPa and 500 MPa respectively, meeting aerospace material specifications for functional prototypes.

Results & Impact

• Speed: Prototype turnaround time reduced from 3–4 weeks to 5–7 business days, enabling rapid design iterations and same-project-cycle revisions.

• Cost Savings: Annual prototyping costs dropped by 55% ($48,000 → $21,600) due to eliminated tooling costs, reduced material waste, and faster production cycles.

• Performance: SLM metal bolts achieved ±0.3mm dimensional tolerance (±0.3% on critical features), passed 500-hour salt spray corrosion tests (316L), and demonstrated near-forged mechanical properties — meeting client specifications for flight-critical functional testing.

English Brochure: Dense, Precise Metal Bolts with SLM 3D Printing

Title: “Strong, Dense, Precise: SLM Metal 3D Printing for Functional Fasteners”

Key Features

• Strength: Near-full density (>99.5%) metal parts with tensile strengths rivaling forged equivalents.

• Cost: No tooling costs, reduced material waste. Per-unit cost drops to $25–$45 vs. $80–$120 for CNC.

• Precision: ±0.3mm tolerance on as-built geometry; tighter fits achievable via secondary machining.

• Complexity: Internal channels, lightweight lattices, and consolidated assemblies impossible with subtractive methods.

Why Choose SLM Metal Printing?

• Near-full density: Suitable for structural and end-use metal components.

• Design freedom: Consolidate assemblies, embed cooling paths, create lightweight lattices.

• Broad material portfolio: Aluminum, titanium, stainless steel, and nickel alloys.

• On-demand production: No minimum lot size. Print one piece or a short run — change the file between batches without tooling. Learn more about metal 3D printing solutions.
