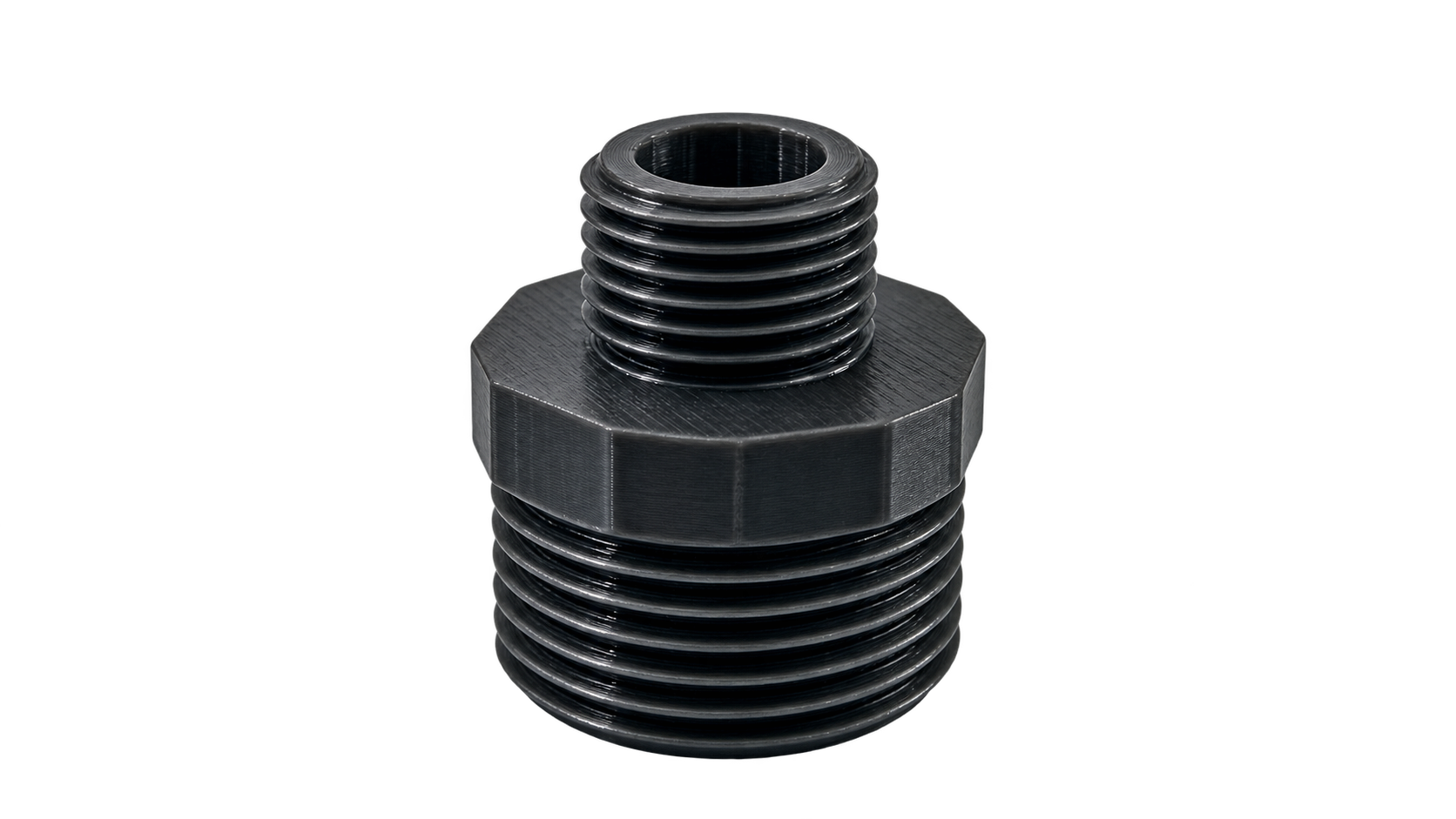

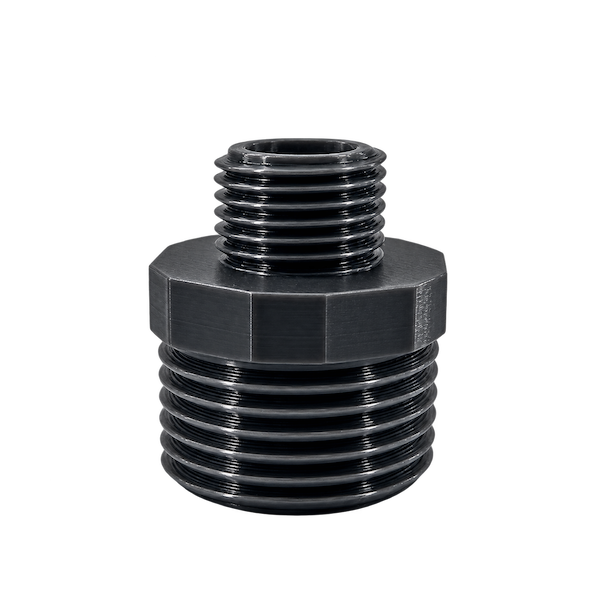

Cost-Effective Production of Functional Fluid Connectors with ABS 3D Printing

Case Background

A industrial equipment manufacturer needed to prototype high-strength fluid connectors for a new hydraulic system. Traditional CNC machining was too expensive ($50–$80 per unit) and slow (2-week lead time) for iterative testing. The team required a solution that could produce durable, pressure-resistant connectors quickly, at low cost, and with minimal post-processing—while meeting strict mechanical performance standards.

Solution: ABS 3D Printing with DFM Optimization

The team adopted acrylonitrile butadiene styrene (ABS) via FDM 3D printing for its toughness, heat resistance, and ability to withstand mechanical stress. Key steps included:

1. Design for Manufacturability (DFM): Engineers redesigned connector geometries to minimize overhangs (e.g., thread profiles, hexagonal grips) and used sparse support structures only for critical overhangs. This reduced material waste and post-processing time by 40%.

2. Rapid Prototyping Workflow: Desktop FDM printers produced batches of connectors in 6–8 hours per batch—60% faster than CNC machining. Layer heights of 0.15–0.2mm ensured smooth thread surfaces for leak-proof sealing.

3. Cost Efficiency: ABS filament costs ~$25/kg, and print times were optimized via 20% infill density. Per-unit cost dropped to $3–$5, compared to $50–$80 for CNC-machined metal prototypes.

Challenges & Resolutions: Warping & Post-Processing

ABS is prone to warping during printing, which risked dimensional inaccuracies in thread profiles. Solutions included:

• Heated Bed & Enclosure: Using a 100°C heated bed and enclosed print chamber reduced warping by 80%, ensuring ±0.1mm thread accuracy.

• Support Removal: Customized deburring tools and acetone vapor smoothing (for critical surfaces) minimized post-processing time while maintaining thread integrity.

• Material Validation: Testing ABS+ (a reinforced variant) for high-pressure applications confirmed it could withstand 150 PSI without deformation.

Results & Impact

• Speed: Prototype turnaround time reduced from 2 weeks to 48 hours, enabling same-day design revisions.

• Cost Savings: Annual prototyping costs dropped by 70% ($24,000 → $7,200) due to cheaper materials and faster production.

• Performance: Connectors passed 100-hour pressure tests (150 PSI) with zero leaks, meeting client specifications for functional testing.

English Brochure: Durable, Low-Cost Connectors with ABS 3D Printing

Title: “Strong, Fast, Affordable: ABS 3D Printing for Functional Prototypes”

Key Features

• Durability: ABS withstands mechanical stress, heat (up to 100°C), and pressure (150+ PSI).

• Cost: Low material costs ($25/kg ABS) and efficient printing reduce per-unit expenses to $3–$5.

• Precision: Achieve ±0.1mm accuracy for critical features (e.g., threads, seals).

• Versatility: Ideal for fluid systems, automotive parts, and industrial fixtures.

Why Choose ABS?

• Superior toughness vs. PLA: Perfect for functional prototypes requiring strength.

• DFM-friendly: Optimize supports and geometries to minimize warping and post-processing.

• Heat resistance: Suitable for high-temperature environments (e.g., engine components).

Post-Processing Made Easy

Our DFM guidelines ensure smooth, functional surfaces:

• Use heated beds (100°C) and enclosures to prevent warping.

• Print with 0.15–0.2mm layers for smooth thread finishes.

• Leverage acetone vapor smoothing for critical sealing surfaces.
