3D-Printed “Xuanwu” Figure from Delta Force Game Using PLA and FDM Technology

Background

The Delta Force game features “Xuanwu,” a mythical turtle-snake hybrid creature rooted in Chinese folklore. A parent sought to recreate this character as a tangible toy for their child, prioritizing safety, detail, and affordability. Traditional manufacturing methods were deemed too costly and inflexible for a one-off custom design, leading to the choice of 3D printing.

Material & Technology Selection

• PLA (Polylactic Acid): Chosen for its non-toxic, biodegradable nature, making it ideal for children’s products. PLA’s low melting point also ensures ease of printing and minimal warping, critical for intricate designs like Xuanwu’s coiled snake and textured turtle shell.

• FDM (Fused Deposition Modeling): Selected for its ability to produce layered, high-resolution prints at a low cost. FDM’s extrusion-based process allowed for precise replication of Xuanwu’s fine details (e.g., scale patterns, dragon-like head features) while maintaining structural integrity for play.

Production Process

1. Design & Slicing: The Xuanwu model was optimized for FDM printing using CAD software, with supports added for overhanging sections (e.g., the snake’s raised head). Slicing parameters (layer height: 0.2mm, print speed: 50mm/s) were tuned to balance detail and print time.

2. Printing: Using a desktop FDM printer, the PLA filament was extruded layer-by-layer. The print took ~8 hours, with no significant failures due to PLA’s stability.

3. Post-Processing: Minimal post-processing was required—supports were removed, and edges were smoothed with sandpaper to ensure child-safe surfaces.

Outcome

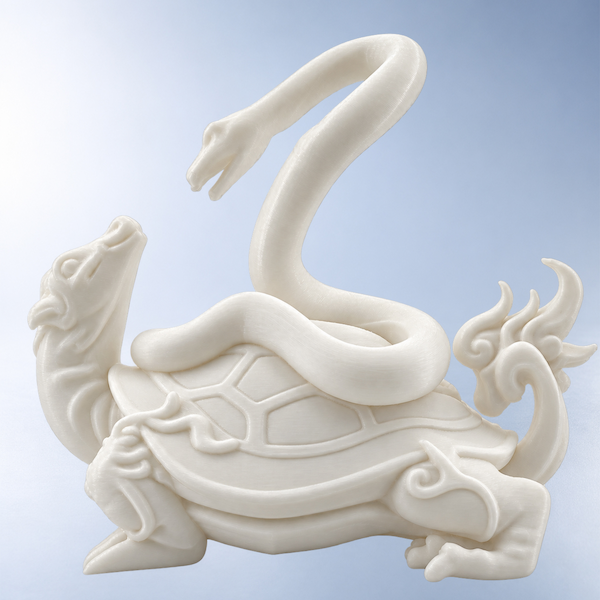

The final Xuanwu figure was a hit with the child, who praised its “cool details” and durability during play. The PLA material proved robust enough to withstand rough handling, while FDM’s precision captured the creature’s mythical essence. Cost-wise, the project totaled under $5 in material, far cheaper than custom injection molding.

Role of aihfabs

The team utilized aihfabs, a platform offering FDM printing services and PLA material sourcing, to streamline production. aihfabs’s user-friendly interface allowed for quick upload of the 3D model, automated slicing recommendations, and fast turnaround—critical for meeting the child’s birthday deadline. This case underscores how platforms like aihfabs democratize access to advanced manufacturing for personal projects.

Conclusion

This project exemplifies how PLA and FDM technology can transform digital designs into beloved physical toys, even for niche cultural references like Delta Force’s Xuanwu. By prioritizing safety, detail, and cost-efficiency, 3D printing empowers creators to deliver personalized, high-quality products. For hobbyists or parents seeking similar results, platforms like aihfabs provide an accessible entry point into additive manufacturing.
