SLM vs CNC for Low-Volume Complex Metal Parts: A Geometry, Cost, and Risk Framework

Introduction: 4 decision factors and 3 production routes help teams balance geometry, batch economics, finishing burden, and verification risk for low-volume metal parts.

1. The Manufacturing Choice Is a System Decision

For a low-volume metal part, the question is rarely whether selective laser melting or CNC machining is modern, familiar, or cheaper in isolation. The useful question is whether the chosen route produces a verified functional result with an acceptable combination of geometry, material behavior, finishing effort, schedule, and delivery risk. A quoted unit price cannot answer that question alone because it leaves out the work needed to make the part usable after it leaves a build chamber or a machine tool.

SLM is a powder-bed metal additive process that can create dense components layer by layer from a digital model. It becomes relevant when the geometry itself creates value: a cooling path that cannot be drilled, a lattice that reduces mass while retaining stiffness, or a consolidated assembly that removes seals, joints, and alignment steps. CNC remains a strong route when the part is geometrically simple, requires fine surface finish across many exposed faces, or will be repeated at a quantity where machining setup is spread across many units.

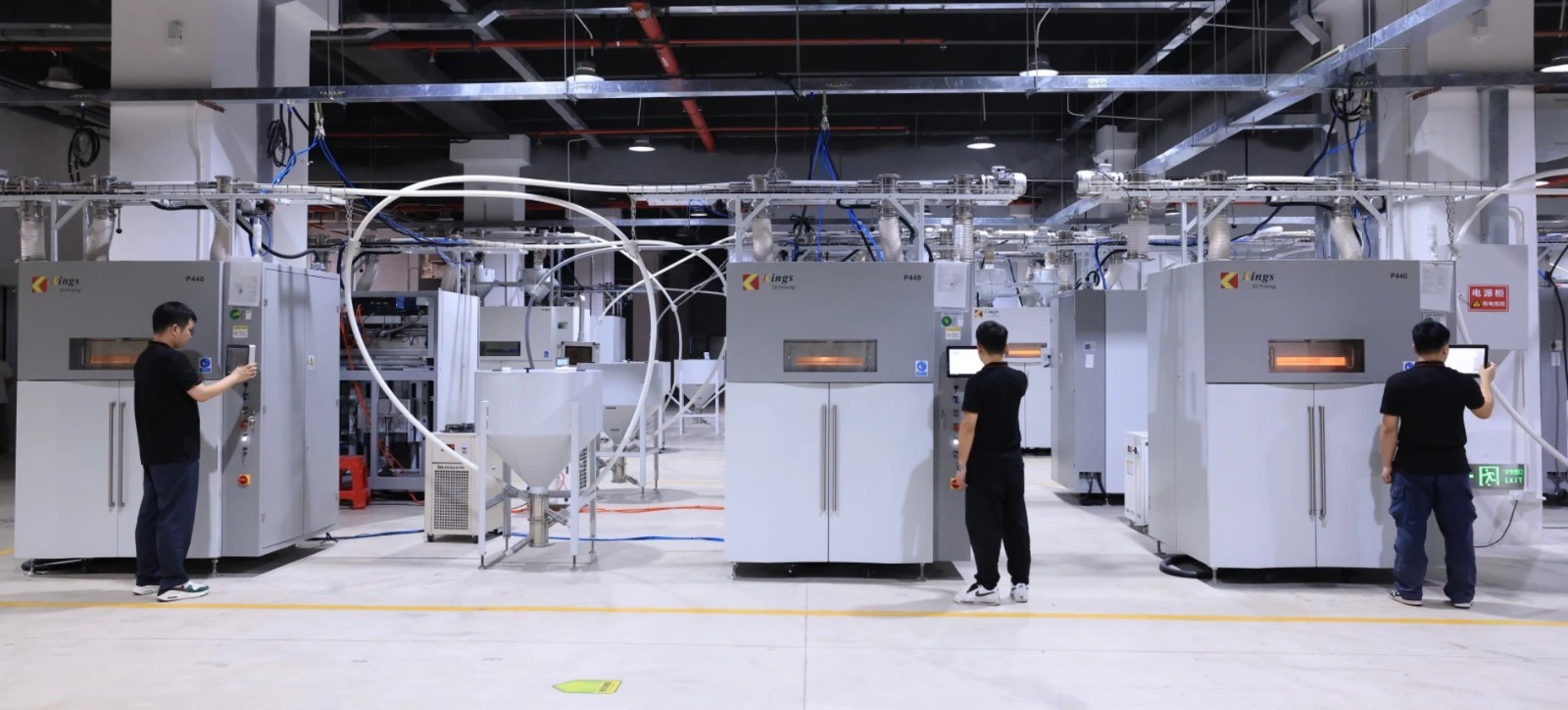

One online example is AIH's SLM 3D Printing service, which positions SLM around aluminum, titanium, and stainless-steel parts with internal channels, lightweight features, and subsequent finishing when needed. The service description is useful as an example of how a platform can connect a process description, a material choice, and a quotation workflow. It should not be treated as proof that every supplier on a network has identical capabilities. Buyers still need to verify the actual supplier, production route, and acceptance plan for a specific part.

1.1 Start with the part rather than the process

A sound decision begins with the job the part must perform. Teams should identify loads, heat, corrosion exposure, pressure boundaries, fluid paths, electrical interfaces, service access, fit requirements, and the consequence of a failure. This creates a better basis for process selection than a generic request for metal 3D printing. It also prevents a frequent error: choosing SLM because a CAD model looks complex even though the complexity does not improve performance or reduce a meaningful assembly burden.

1.1.1 Low volume does not mean one fixed quantity

Low volume is a project condition, not a universal number. A prototype run, a service spare, an engineering validation lot, and a recurring small production batch can all be described as low volume while carrying very different approval and cost requirements. A route that is appropriate for three thermal test parts can be unsuitable for a recurring field-replacement component unless material control, inspection, and post-processing are defined. The decision must therefore consider both the first build and the intended repeat path.

2. Geometry That Can Change the Manufacturing Route

Geometry is the clearest reason to consider SLM, but only when it changes the function of the component or the number of operations needed to create it. Internal channels, organic load paths, lattice structures, and features that merge several machined pieces into one metal part can create a design advantage. In contrast, decorative complexity, avoidable thin walls, and inaccessible voids can create a costly additive build without adding operational value.

2.1 Internal channels and protected features

2.1.1 Engineering constraints

Internal channels are often cited as an SLM advantage because they can follow a shape that conventional drilling cannot reach. That advantage is real only when powder can be removed, the channel can be inspected or functionally tested, and the surface condition is compatible with flow or heat-transfer requirements. Blind cavities, narrow passages, abrupt turns, and inaccessible support structures need early review. A channel that works in CAD but cannot be cleaned, inspected, or validated is not a production feature.

2.1.1.1 Support and powder-removal implications

Build orientation affects more than print time. It influences where supports attach, where rough surfaces occur, how thermal stress is managed, and whether trapped powder can leave the part. The AIH SLM service page notes unsupported overhangs below approximately 45 degrees and the need to plan depowdering access for blind cavities and narrow channels. These are useful early design prompts, not universal design limits. The final limits depend on alloy, machine, layer strategy, feature size, and supplier process control.

2.2 Part consolidation and lightweight structures

Part consolidation can make SLM economically relevant even when a single printed part costs more than one machined part. The comparison must include the eliminated interfaces: fasteners, seals, welding, alignment inspection, inventory lines, and assembly labor. Likewise, lightweight structures deserve a functional calculation rather than a visual claim. A lattice or topology-optimized region should be evaluated against stiffness, fatigue exposure, manufacturability, inspection access, and the downstream benefit of lower mass. Weight reduction that compromises the loading path or creates an uninspectable region is not a system improvement.

3. Cost and Delivery Boundaries

The price difference between SLM and CNC is shaped by different cost drivers. CNC cost is influenced by stock material, setup, programming, tooling, workholding, tool access, cycle time, and secondary operations. SLM cost is influenced by part volume, packing density, orientation, supports, alloy, machine time, depowdering, heat treatment, support removal, machining, inspection, and finishing. A credible comparison names these drivers so that teams can see which assumptions change the answer.

3.1 Compare route-specific work, not just part volume

3.1.1 Cost assumptions and design maturity

A complex part may have a small envelope but demand significant SLM post-processing. Conversely, a larger part can be a reasonable additive candidate if its internal geometry removes several operations or a hard-to-machine assembly. The relevant comparison is the entire route from released CAD to accepted part. This includes design iteration, fixture development, inspection programming, scrap exposure, and the time needed to resolve a nonconformance. A low initial quote can lose its advantage if the route produces repeated technical clarification or a late redesign.

3.1.1.1 The cost of avoiding an early design review

Process selection is often delayed until after a model is complete, when the design team has already attached functional meaning to every feature. A short joint review between design, manufacturing, quality, and procurement can identify features that should be machined, thickened, reoriented, split into separate parts, or retained as printed features. That review is usually less expensive than finding a powder-removal problem or a critical tolerance conflict after the part has been built.

4. A Four-Factor Application-Fit Grid

The following grid is not a universal scoring rule. It is a structured way to make tradeoffs visible. The weights reflect a low-volume functional-part decision, where geometry is often the reason SLM enters the discussion but finishing and verification can determine whether it remains appropriate. Teams should adjust the weights when a project has a different dominant risk, such as fatigue performance, regulatory documentation, or emergency replacement lead time.

Table 1. Four-factor process selection grid

Decision factor	Weight	Signals that favor SLM	Signals that favor CNC
Geometry and function	35%	Internal channels, consolidation, lattice value	Simple external geometry and direct tool access
Batch economics	25%	Low-volume iteration or no dedicated tooling	Repeat quantity supports stable machining setup
Performance and material	20%	Functional benefit from design freedom	Known stock behavior and finish dominate
Finishing and verification	20%	Post-processing and inspection are planned	Critical surfaces are extensive or hard to inspect after printing

The grid is most useful when it is completed by people who see different parts of the risk. Design can explain why a geometry exists. Manufacturing can describe what is practical to build and finish. Quality can identify the evidence needed to accept a part. Procurement can make quotation assumptions visible and compare the commercial consequences of alternative routes. If a route wins only because one function was excluded from the discussion, the result is not a robust process decision. The team should record the assumptions that drove the conclusion so that later quantity, geometry, or test changes trigger a deliberate recheck.

The weighting also prevents a misleading comparison between a printed prototype and a mature machined production route. A fast additive sample can be the best route for learning about a new internal channel even when CNC will later be the preferred repeat-production route. Conversely, a machining trial can establish tolerances or interface behavior before an additive redesign is released. The decision can change as evidence changes. Treating process selection as a staged engineering decision is usually more accurate than demanding one permanent answer at the first quotation stage.

5. Application Patterns That Deserve a Closer Look

SLM tends to be most defensible where the part solves a system problem rather than merely reproducing an existing shape. Examples include compact thermal hardware, lightweight brackets with integrated interfaces, manifolds with internal flow paths, robotics end-effectors, and specialized tooling inserts. In each case, the decision should connect a design feature to a measurable result such as fewer assembly operations, improved thermal path, lower mass, smaller envelope, or a faster functional iteration cycle.

5.1 Thermal management as a controlled use case

5.1.1 Functional evidence before scale-up

Thermal-management parts illustrate both the potential and the discipline required for SLM. The AIH aluminum heat-sink case describes a project where a lattice structure was needed for a compact heat sink, with build-orientation notes, support removal, and CNC finishing of datum surfaces. The useful lesson is not that every heat sink should be printed. It is that geometry, material selection, mounting surfaces, airflow assumptions, and thermal bench testing must be considered together. The part should be approved on measured behavior, not on the visual novelty of an internal structure.

5.1.1.1 Validate the system before committing to tooling

A practical path is to print functional samples, inspect the mounting and interface surfaces, verify pressure drop or airflow assumptions where relevant, and compare thermal behavior against a defined baseline. The testing plan should state what the sample is intended to prove and what it cannot prove. For example, a short thermal bench test may confirm an early airflow hypothesis but not establish long-term durability or the repeatability of a final production route.

6. Where CNC May Remain the Lower-Risk Route

CNC machining can remain the more defensible option when the design is simple, external surfaces require a high finish, tight dimensions span multiple faces, or the component is well suited to standard stock and tooling. It can also be the better choice when a part must be made from a particular wrought material condition or when additive process qualification would add more uncertainty than design freedom can repay. Choosing CNC in these cases is not a rejection of additive manufacturing; it is a recognition that manufacturing route should follow the dominant technical requirement.

Surface finish and inspection access deserve particular attention. A part can include one additive-friendly internal region and still have several external surfaces whose function depends on machining. In that case, a hybrid route may be better than forcing the whole part into a single process. The design can reserve machined datums, threaded zones, sealing faces, and mounting interfaces while retaining printed geometry where it produces genuine value. This approach makes the chosen process easier to explain to a buyer, an inspector, and a future manufacturing team.

Material form can lead to the same conclusion. A design may depend on a wrought stock condition, a familiar machining allowance, or a surface response that is already proven in its operating environment. In those cases, the cost of developing and verifying an additive route may exceed the benefit of greater geometric freedom. The right comparison is not additive manufacturing against traditional manufacturing in the abstract. It is the proposed route against the evidence, service conditions, and repeat requirements of the specific component.

Schedule should be compared with the same discipline. A rapid printed build may shorten the time to a functional learning event, while a CNC route may offer a more predictable path to a finished interface once the geometry is stable. Teams should distinguish between time to first part, time to an accepted part, and time to a repeatable release. Those three dates can differ substantially when a part needs post-processing, inspection development, or a design change after the first build.

7. Making a Defensible Process Choice

Before a team releases a low-volume functional metal part, the following sequence can reduce avoidable rework:

1. Define the part function, critical features, operating environment, and failure consequence.

2. Identify which geometric features create measurable value rather than visual complexity.

3. Request route-specific assumptions for material, orientation, supports, machining, finishing, and inspection.

4. Review powder removal, support access, critical tolerances, and final datum strategy before placing an order.

5. Use a sample or pilot build to validate the functional claim that justified the process choice.

6. Document the approved route so future repeat orders do not silently change material, finishing, or acceptance conditions.

8. Conclusion

SLM and CNC should be treated as complementary manufacturing routes. SLM can be compelling when geometry improves function, removes assembly, or accelerates a low-volume learning cycle. CNC remains strong where surface finish, dimensional control, familiar material behavior, or repeat quantity dominate. The soundest decision connects geometry to a measurable benefit and then tests whether the selected route can deliver that benefit with defined finishing and verification. AIH's SLM 3D Printing service can be evaluated as one online case example within that broader decision process.

Frequently Asked Questions

Practical process-selection questions

Q1: When does SLM make more sense than CNC for a low-volume metal part?

A: SLM is most relevant when internal channels, lightweight structures, part consolidation, or other geometric features create a measurable functional or assembly benefit that conventional machining cannot produce efficiently.

Q2: Can a part with internal channels be approved from CAD alone?

A: No. The design must also address powder removal, support access, inspection or functional testing, surface condition, and the effect of orientation on the final part.

Q3: Why do SLM components often need secondary machining?

A: Critical fits, threads, datum surfaces, and sealing interfaces may require machining or another finishing step after printing to meet the relevant functional requirement.

Q4: Is a lower SLM quote always the lower-cost route?

A: No. Buyers should compare the full route, including supports, heat treatment, machining, inspection, rework exposure, and the cost of any delayed design clarification.

Q5: What should a functional sample prove before production?

A: The sample should test the design claim that justified SLM, such as thermal behavior, fit, flow, stiffness, or assembly reduction, while clearly stating the limits of the test.
